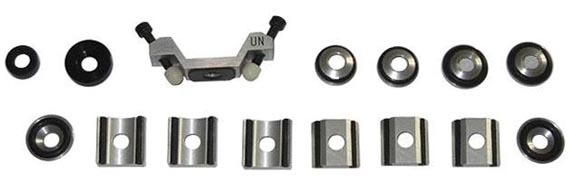

里氏硬度计支撑环
异型支撑环各型号适用范围
序 号
|
型号
|
简 图
|
备 注
|
异型支撑环1
|
Z10-15
|
测外圆柱面R10-R15
|
|
异型支撑环2
|
Z14.5-30
|
测外圆柱面R14.5-R30
|
|
异型支撑环3
|
Z25-50
|
测外圆柱面R25-R50
|
|
异型支撑环4
|
HZ11-13
|
测内圆柱面R11-R13
|
|
异型支撑环5
|
HZ12.5-17
|
测内圆柱面R12.5-R17
|
|
异型支撑环6
|
HZ16.5-30
|
测内圆柱面R16.5-R30
|
|
异型支撑环7
|
K10-15
|
测外球面SR10-SR15
|
|
异型支撑环8
|
K14.5-30
|
测外球面SR14.5-SR30
|
|
异型支撑环9
|
HK11-13
|
测内球面SR11-SR13
|
|
异型支撑环10
|
HK12.5-17
|
测内球面SR12.5-SR17
|
|
异型支撑环11
|
HK16.5-30
|
测内球面SR16.5-SR30
|
|
异型支撑环12
|
UN
|
测外圆柱面半径可调
R10—∞
|
